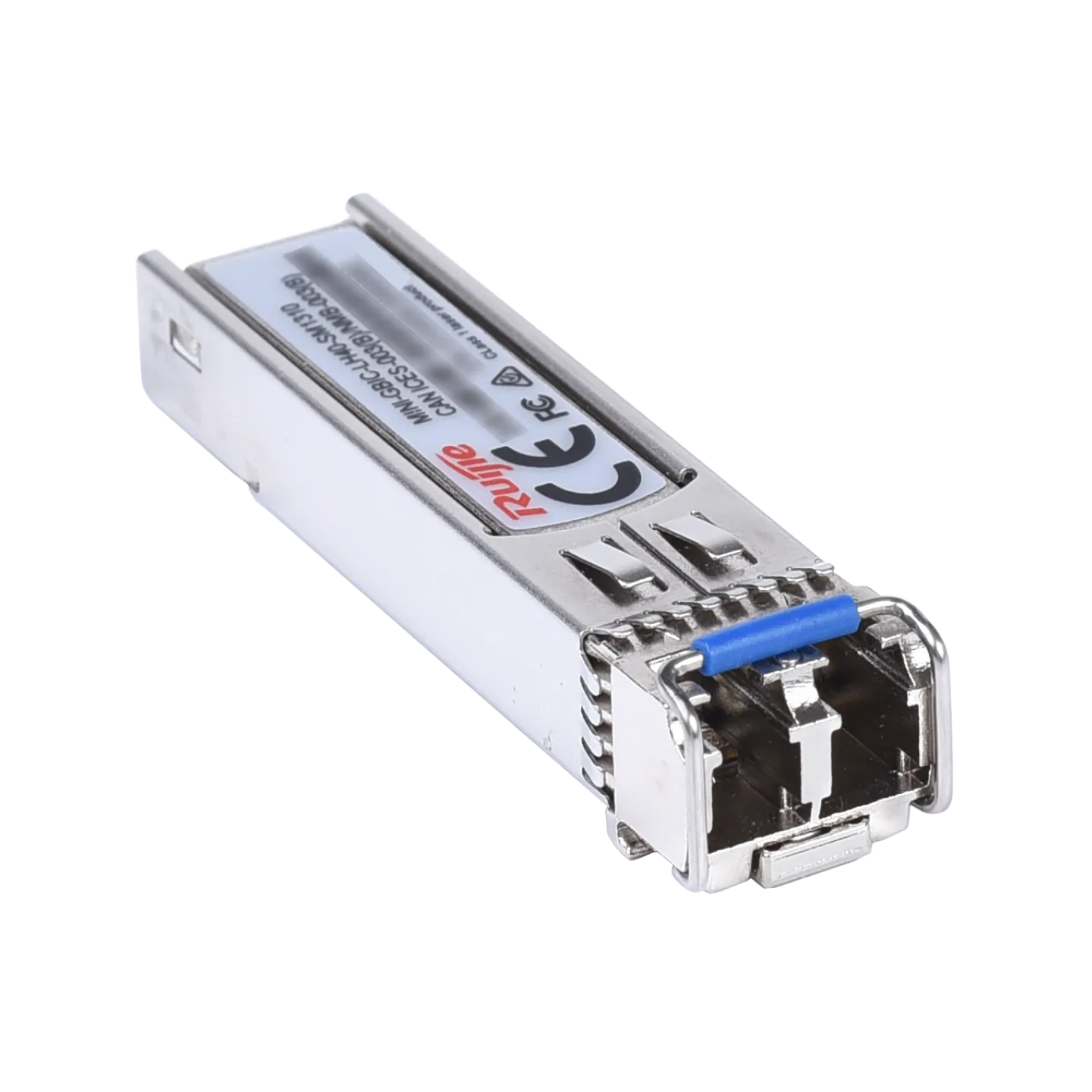

Product description

Highlight Features
Max. power consumption 1.5 W
Saving half fiber by using only one fiber for transmiting and receiving
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant

Key Specification
Data Rate: 1.25Gbps
Form factor: SFP
Connector type: Duplex LC
Cable type: SMF
Fiber end face finish type: Ultra Physical Contact (UPC)
Transmitter type: DFB
Receiver type: PIN
Reach: 40km (131,233.60 ft.)
Bit error ratio (BER): 1.00E-12
Data diagnosis capable (DDM/DOM): Yes
Power consumption: ≤ 1.5 W

Wavelenght(nm): 1310
Max. transmit power(AVG): 0 dBm
Min. transmit power(AVG): –5 dBm
Min. extinction ratio: ≥ 9 dB

Receive sensitivity(OMA): < –23 dBm Overload optical power(AVG): -3dBm Operating temperature: °C to 70°C (32°F to 158°F) Operatin humidity: 10% RH to 90% RH Storage temperature: –40°C to +85°C (–40°F to +185°F) Storage humidity: 10% RH to 90% RH Dimensions (W x D x H): 68 mm x 14 mm x 8.5 mm (2.68 in. x 0.55 in. x 0.33 in.) Weight: 35 g (0.08 lbs.)
