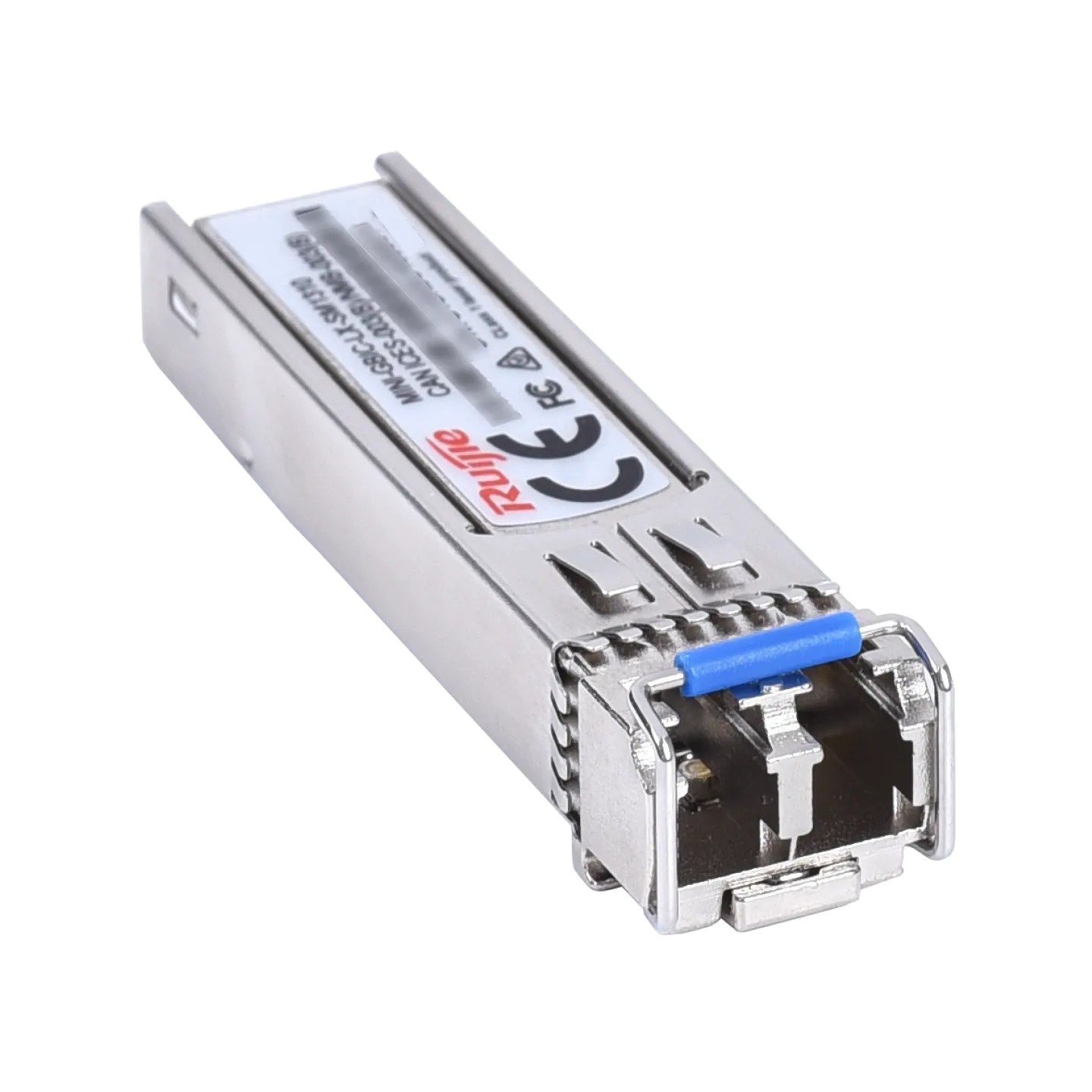

Product description

Highlight Features
Max. power consumption 1.5 W
Hot pluggable SFP MSA compliant
Digital optical monitoring capability for strong diagnostic capabilities
Compliant with IEEE 802.3z Gigabit Ethernet
Class 1 Laser safety and RoHS compliant

Key Specification
Data Rate: 1.25Gbps
Form factor: SFP
Connector type: Duplex LC
Cable type: SMF
Fiber end face finish type: Ultra Physical Contact (UPC)
Transmitter type: DFB
Receiver type: PIN
Reach: 10km (32,808.40 ft.)
Bit error ratio (BER): 1.00E-12
Data diagnosis capable (DDM/DOM): Yes
Power consumption: ≤ 1.5 W

Wavelenght(nm): 1310
Max. transmit power(AVG): -3 dBm
Min. transmit power(AVG): –11 dBm
Min. extinction ratio: ≥ 9 dB

Receive sensitivity(OMA): < –19 dBm Overload optical power(AVG): -3dBm Operating temperature: °C to 70°C (32°F to 158°F) Operatin humidity: 10% RH to 90% RH Storage temperature: –40°C to +85°C (–40°F to +185°F) Storage humidity: 10% RH to 90% RH Dimensions (W x D x H): 56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.) Weight: 35 g (0.08 lbs.)
